Step 1: Open the Programmer Window

To open the Programmer window and create a CDF, follow these steps:

  1. Choose New (File menu). The Device Design Files tab of the New dialog box appears automatically.

  2. Click the Other Files tab.

  3. In the Other Files tab, select Chain Description File.

  4. To create the CDF, click OK. The Programmer window opens with a blank CDF.

    5. Show Me

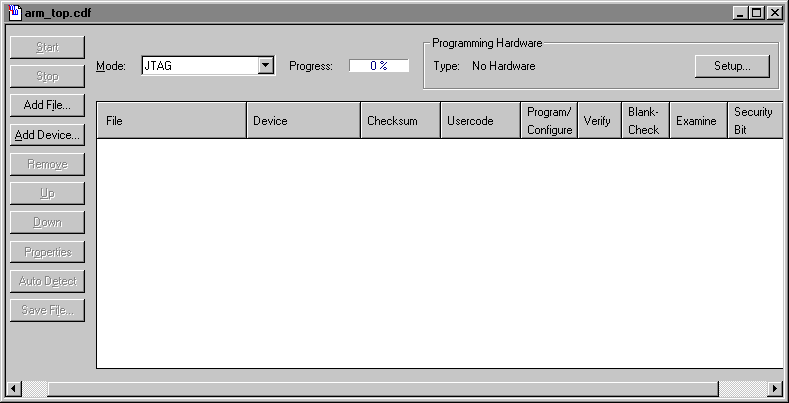

    Programmer Window

  5. Choose Save As (File menu). The Save As dialog box appears.

  6. Type arm_top.cdf in the File name box. In the Save as type list, make sure that Chain Description File is selected.

  7. Click Save.



To continue the tutorial, proceed to Step 2: Set Up a Passive Serial Chain.
